Harley Davidson IRON 883 India Specifications, Features, Price


A lean, stripped-down machine with black spokes cast aluminium wheels. The iron 883 is a pure Harley-Davidson.



Harley Davidson IRON 883 - India



Harley Davidson IRON 883 Technical Specifications:



DIMENSIONS:
Length                                      2,245 mm
Overall Width                           820 mm

Overall Height                          1,120 mm
Seat Height                              735 mm
Ground Clearance                    120 mm
Wheelbase                               1,510 mm


TIRES:
Front                                       100/90-19 57H

Rear                                        150/80B16 71H
Fuel Capacity                          12.5 L
Oil Capacity                            2.7 L
Kerb Weight                           251 kg



ENGINE:
Engine Type                            Air-cooled, Evolution
Bore x Stroke                         76.2 mm x 96.8 mm
Displacement                          883 cc
Compression Ratio                 8.9:1
Fuel System                            Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication System                 Dry-sump

POWER:
Engine Torque                        70 Nm @ 3750 rpm

DRIVETRAIN:

Primary Drive                        Chain, 34/57 ratio
Final Drive - HDI                  Belt, 29/68 ratio
Clutch                                   Multi-plate, wet
Transmission                         5-Speed

CHASSIS:

Frame                                  Mild steel; tubular frame; circular sections; cast junctions
Swingarm                             Mild steel; rectangular tube section stamped junctions; MIG welded
Front Forks                          39 mm
Rear Shocks                        Coil-over; preload dual-adjustable
Brakes, Caliper type            Dual-piston front, single-piston rear

ELECTRIC:

Battery                                Sealed, maintenance-free, 12V, 12-amp/hour, 220 cca
Headlamp                           55-watt low beam, 60-watt high beam

Harley Davidson IRON 883 Price (India):

Ex. Showroom Price      :           Rs. 6,50,000/- (New Delhi)

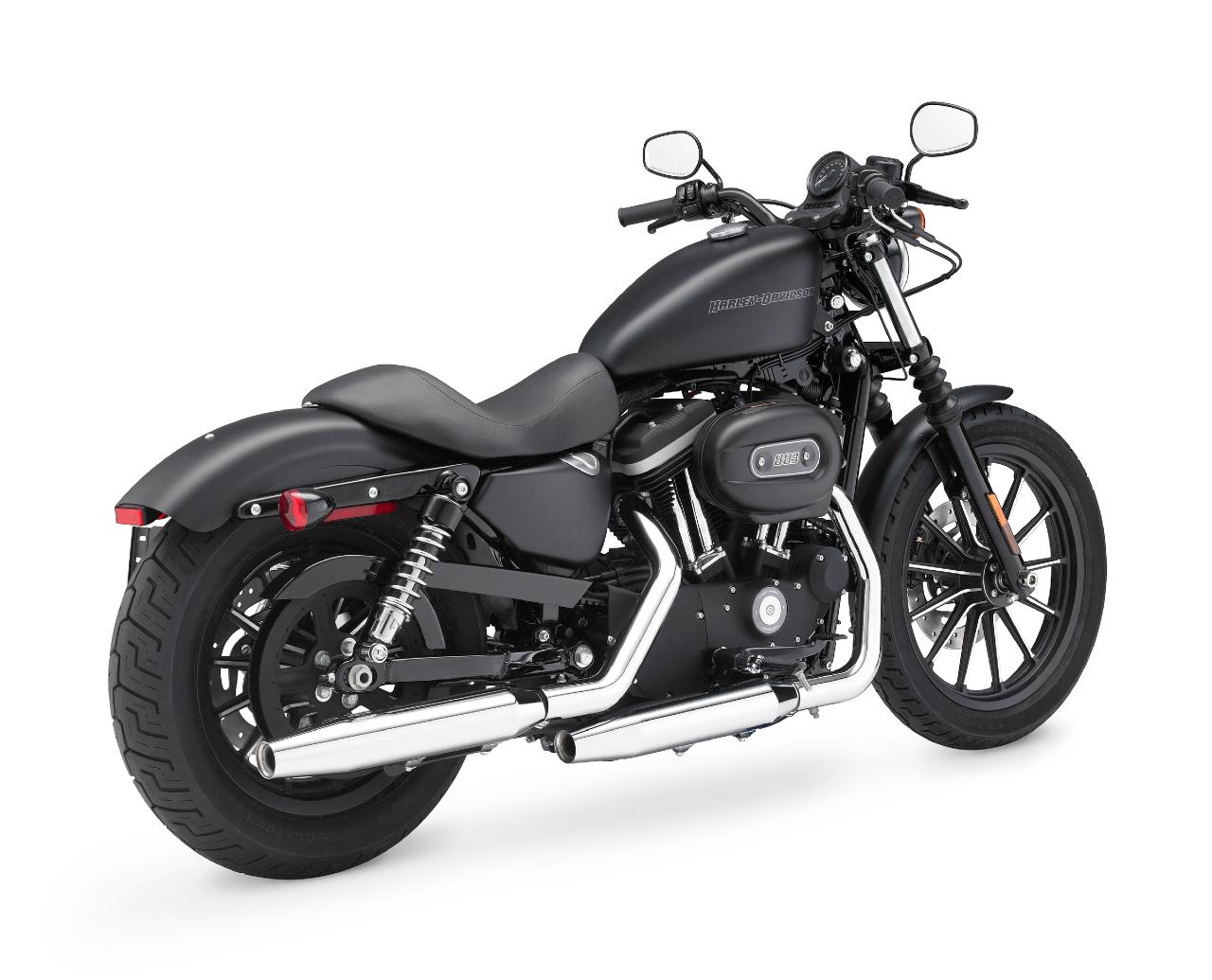

Harley Davidson IRON 883 HD Photos (Features):
(Note: Please Click the Photo to Enlarge)

























































Note: Bike price may vary from city to city.
